Product Recognition Service deployment based on PaddleServing

(English|简体中文)

This document will introduce how to use the PaddleServing to deploy the product recognition model based on retrieval method as a pipeline online service.

Some Key Features of Paddle Serving:

• Integrate with Paddle training pipeline seamlessly, most paddle models can be deployed with one line command.
• Industrial serving features supported, such as models management, online loading, online A/B testing etc.
• Highly concurrent and efficient communication between clients and servers supported.

The introduction and tutorial of Paddle Serving service deployment framework reference document.

Contents

• Environmental preparation
• Model conversion
• Paddle Serving pipeline deployment
• FAQ

Environmental preparation

PaddleClas operating environment and PaddleServing operating environment are needed.

1. Please prepare PaddleClas operating environment reference link. Download the corresponding paddle whl package according to the environment, it is recommended to install version 2.1.0.

2. The steps of PaddleServing operating environment prepare are as follows:

   Install serving which used to start the service

   pip3 install paddle-serving-server==0.6.1 # for CPU
   pip3 install paddle-serving-server-gpu==0.6.1 # for GPU
   # Other GPU environments need to confirm the environment and then choose to execute the following commands
   pip3 install paddle-serving-server-gpu==0.6.1.post101 # GPU with CUDA10.1 + TensorRT6
   pip3 install paddle-serving-server-gpu==0.6.1.post11 # GPU with CUDA11 + TensorRT7


3. Install the client to send requests to the service In download link find the client installation package corresponding to the python version. The python3.7 version is recommended here:

   wget https://paddle-serving.bj.bcebos.com/test-dev/whl/paddle_serving_client-0.0.0-cp37-none-any.whl
   pip3 install paddle_serving_client-0.0.0-cp37-none-any.whl


4. Install serving-app

   pip3 install paddle-serving-app==0.6.1


   note: If you want to install the latest version of PaddleServing, refer to link.

Model conversion

When using PaddleServing for service deployment, you need to convert the saved inference model into a serving model that is easy to deploy. The following assumes that the current working directory is the PaddleClas root directory

Firstly, download the inference model of ResNet50_vd

cd deploy
# Download and unzip the ResNet50_vd model
wget -P models/ https://paddle-imagenet-models-name.bj.bcebos.com/dygraph/rec/models/inference/product_ResNet50_vd_aliproduct_v1.0_infer.tar
cd models
tar -xf product_ResNet50_vd_aliproduct_v1.0_infer.tar

Then, you can use installed paddle_serving_client tool to convert inference model to mobile model.

#  Product recognition model conversion
python3 -m paddle_serving_client.convert --dirname ./product_ResNet50_vd_aliproduct_v1.0_infer/ \
                                         --model_filename inference.pdmodel  \
                                         --params_filename inference.pdiparams \
                                         --serving_server ./product_ResNet50_vd_aliproduct_v1.0_serving/ \
                                         --serving_client ./product_ResNet50_vd_aliproduct_v1.0_client/

After the ResNet50_vd inference model is converted, there will be additional folders of product_ResNet50_vd_aliproduct_v1.0_serving and product_ResNet50_vd_aliproduct_v1.0_client in the current folder, with the following format:

|- product_ResNet50_vd_aliproduct_v1.0_serving/
  |- __model__
  |- __params__
  |- serving_server_conf.prototxt
  |- serving_server_conf.stream.prototxt

|- product_ResNet50_vd_aliproduct_v1.0_client
  |- serving_client_conf.prototxt
  |- serving_client_conf.stream.prototxt

Once you have the model file for deployment, you need to change the alias name in serving_server_conf.prototxt: change alias_name in fetch_var to features, The modified serving_server_conf.prototxt file is as follows:

feed_var {
  name: "x"
  alias_name: "x"
  is_lod_tensor: false
  feed_type: 1
  shape: 3
  shape: 224
  shape: 224
}
fetch_var {
  name: "save_infer_model/scale_0.tmp_1"
  alias_name: "features"
  is_lod_tensor: true
  fetch_type: 1
  shape: -1
}

Next，download and unpack the built index of product gallery

cd ../
wget https://paddle-imagenet-models-name.bj.bcebos.com/dygraph/rec/data/recognition_demo_data_v1.1.tar && tar -xf recognition_demo_data_v1.1.tar

Paddle Serving pipeline deployment

1. Download the PaddleClas code, if you have already downloaded it, you can skip this step.

   git clone https://github.com/PaddlePaddle/PaddleClas

   # Enter the working directory
   cd PaddleClas/deploy/paddleserving/recognition


   The paddleserving directory contains the code to start the pipeline service and send prediction requests, including:

   __init__.py
   config.yml                # configuration file of starting the service
   pipeline_http_client.py   # script to send pipeline prediction request by http
   pipeline_rpc_client.py    # script to send pipeline prediction request by rpc
   recognition_web_service.py   # start the script of the pipeline server


2. Run the following command to start the service.

   # Start the service and save the running log in log.txt
   python3 recognition_web_service.py &>log.txt &

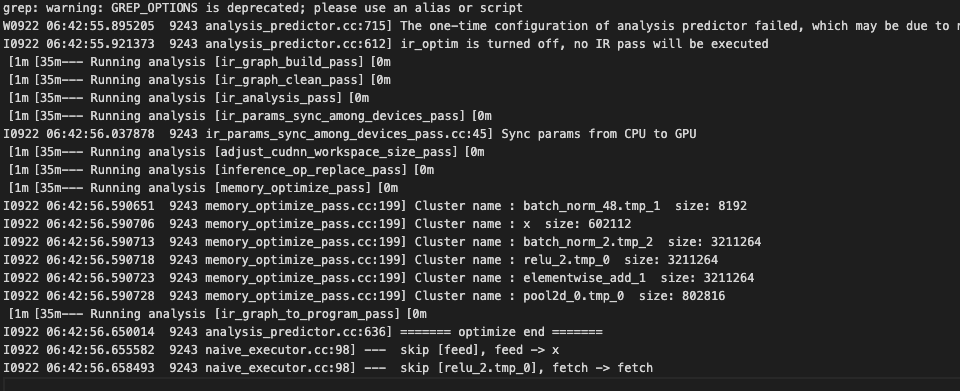

   After the service is successfully started, a log similar to the following will be printed in log.txt

3. Send service request

   python3 pipeline_http_client.py


   After successfully running, the predicted result of the model will be printed in the cmd window. An example of the result is:

   Adjust the number of concurrency in config.yml to get the largest QPS.

   op:
       concurrency: 8
       ...


   Multiple service requests can be sent at the same time if necessary.

   The predicted performance data will be automatically written into the PipelineServingLogs/pipeline.tracer file.

FAQ

Q1: No result return after sending the request.

A1: Do not set the proxy when starting the service and sending the request. You can close the proxy before starting the service and before sending the request. The command to close the proxy is:

unset https_proxy
unset http_proxy
