[Project] Medical semantic seg dataset: ISIC-2017 Task1 (#2709)

pull/2677/head
legendchilli 2023-06-22 11:03:34 +08:00 committed by GitHub
parent b24f422a95
commit 3cc9d30d04
No known key found for this signature in database
GPG Key ID: 4AEE18F83AFDEB23
7 changed files with 407 additions and 0 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

158
projects/medical/2d_image/dermoscopy/isic2017_task1/README.md 100644
View File

@ -0,0 +1,158 @@
# ISIC-2017 Task1
## Description
This project support **`ISIC-2017 Task1 `**, and the dataset used in this project can be downloaded from [here](https://challenge.isic-archive.com/data/#2017).
### Dataset Overview
The goal of the challenge is to help participants develop image analysis tools to enable the automated diagnosis of melanoma from dermoscopic images.
This challenge provides training data (~2000 images) for participants to engage in all 3 components of lesion image analysis. A separate public validation dataset (~150 images) and blind held-out test dataset (~600 images) will be provided for participants to generate and submit automated results.
### Original Statistic Information
| Dataset name | Anatomical region | Task type | Modality | Num. Classes | Train/Val/Test Images | Train/Val/Test Labeled | Release Date | License |
| ---------------------------------------------------------------- | ----------------- | ------------ | ---------- | ------------ | --------------------- | ---------------------- | ------------ | ---------------------------------------------------------------------- |
| [ISIC-2017 Task1](https://challenge.isic-archive.com/data/#2017) | full body | segmentation | dermoscopy | 2 | 2000/150/600 | yes/yes/yes | 2017 | [CC-0](https://creativecommons.org/share-your-work/public-domain/cc0/) |
| Class Name | Num. Train | Pct. Train | Num. Val | Pct. Val | Num. Test | Pct. Test |
| :---------: | :--------: | :--------: | :------: | :------: | :-------: | :-------: |
| normal | 2000 | 82.86 | 150 | 73.88 | 600 | 70.62 |
| skin lesion | 2000 | 17.14 | 150 | 26.12 | 600 | 29.38 |
Note:
- `Pct` means percentage of pixels in this category in all pixels.

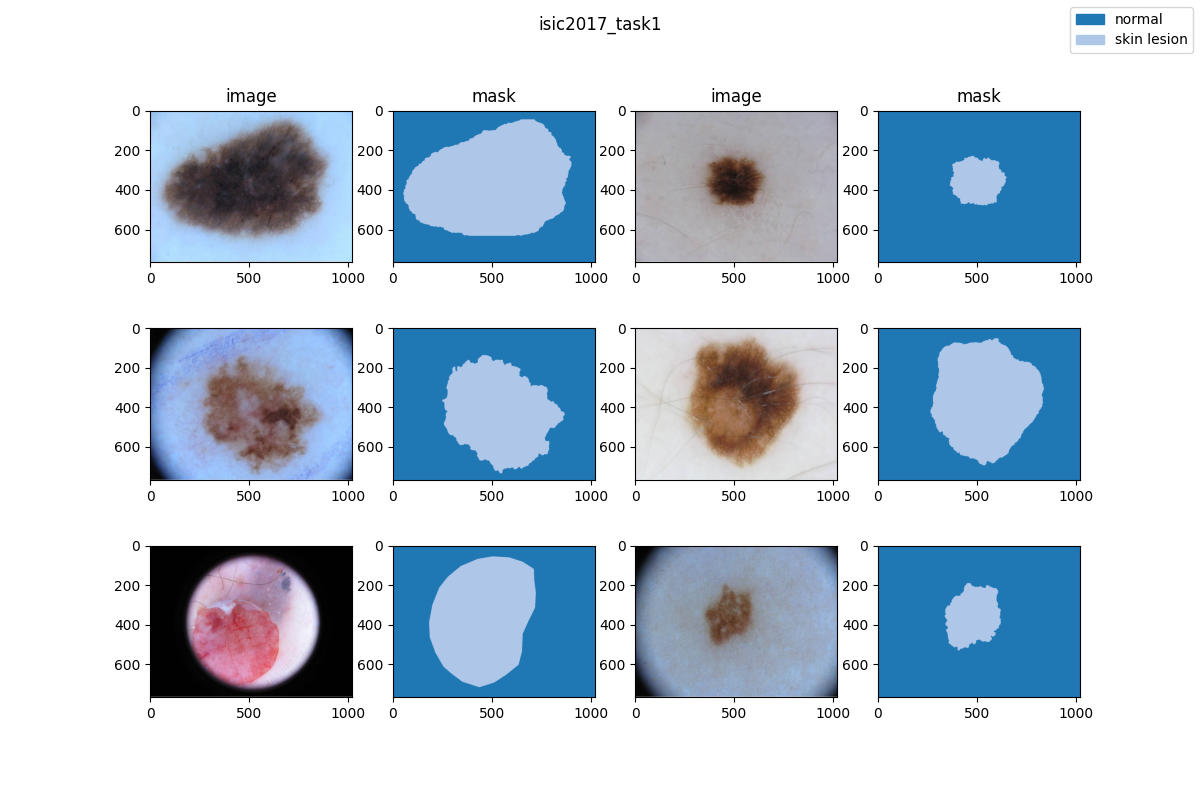

### Visualization
![bac](https://raw.githubusercontent.com/uni-medical/medical-datasets-visualization/main/2d/semantic_seg/dermoscopy/isic2017_task1/isic2017_task1.png)
### Prerequisites
- Python 3.8
- PyTorch 1.10.0
- pillow(PIL) 9.3.0
- scikit-learn(sklearn) 1.2.0
- [MIM](https://github.com/open-mmlab/mim) v0.3.4
- [MMCV](https://github.com/open-mmlab/mmcv) v2.0.0rc4
- [MMEngine](https://github.com/open-mmlab/mmengine) v0.2.0 or higher
- [MMSegmentation](https://github.com/open-mmlab/mmsegmentation) v1.0.0rc5
All the commands below rely on the correct configuration of PYTHONPATH, which should point to the project's directory so that Python can locate the module files. In isic2017_task1/ root directory, run the following line to add the current directory to PYTHONPATH:
```shell
export PYTHONPATH=`pwd`:$PYTHONPATH
```
### Dataset preparing
- download dataset from [here](https://challenge.isic-archive.com/data/#2017) and decompression data to path 'data/'.
- run script `"python tools/prepare_dataset.py"` to split dataset and change folder structure as below.
- run script `"python ../../tools/split_seg_dataset.py"` to split dataset and generate `train.txt` and `test.txt`. If the label of official validation set and test set can't be obtained, we generate `train.txt` and `val.txt` from the training set randomly.
```none
mmsegmentation
├── mmseg
├── projects
│ ├── medical
│ │ ├── 2d_image
│ │ │ ├── dermoscopy
│ │ │ │ ├── isic2017_task1
│ │ │ │ │ ├── configs
│ │ │ │ │ ├── datasets
│ │ │ │ │ ├── tools
│ │ │ │ │ ├── data
│ │ │ │ │ │ ├── train.txt
│ │ │ │ │ │ ├── val.txt
│ │ │ │ │ │ ├── test.txt
│ │ │ │ │ │ ├── images
│ │ │ │ │ │ │ ├── train
│ │ │ │ | │ │ │ ├── xxx.png
│ │ │ │ | │ │ │ ├── ...
│ │ │ │ | │   │   │ └── xxx.png
│ │ │ │ │ │ │ ├── val
│ │ │ │ | │ │ │ ├── yyy.png
│ │ │ │ | │ │ │ ├── ...
│ │ │ │ | │   │   │ └── yyy.png
│ │ │ │ │ │ │ ├── test
│ │ │ │ | │ │ │ ├── yyy.png
│ │ │ │ | │ │ │ ├── ...
│ │ │ │ | │   │   │ └── yyy.png
│ │ │ │ │ │ ├── masks
│ │ │ │ │ │ │ ├── train
│ │ │ │ | │ │ │ ├── xxx.png
│ │ │ │ | │ │ │ ├── ...
│ │ │ │ | │   │   │ └── xxx.png
│ │ │ │ │ │ │ ├── val
│ │ │ │ | │ │ │ ├── yyy.png
│ │ │ │ | │ │ │ ├── ...
│ │ │ │ | │   │   │ └── yyy.png
│ │ │ │ │ │ │ ├── test
│ │ │ │ | │ │ │ ├── yyy.png
│ │ │ │ | │ │ │ ├── ...
│ │ │ │ | │   │   │ └── yyy.png
```
### Training commands
```shell
mim train mmseg ./configs/${CONFIG_PATH}
```
To train on multiple GPUs, e.g. 8 GPUs, run the following command:
```shell
mim train mmseg ./configs/${CONFIG_PATH} --launcher pytorch --gpus 8
```
### Testing commands
```shell
mim test mmseg ./configs/${CONFIG_PATH} --checkpoint ${CHECKPOINT_PATH}
```
<!-- List the results as usually done in other model's README. [Example](https://github.com/open-mmlab/mmsegmentation/tree/dev-1.x/configs/fcn#results-and-models)
You should claim whether this is based on the pre-trained weights, which are converted from the official release; or it's a reproduced result obtained from retraining the model in this project. -->
## Results
### ISIC-2017 Task1
| Method | Backbone | Crop Size | lr | mIoU | mDice | config |
| :-------------: | :------: | :-------: | :----: | :--: | :---: | :---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------: |
| fcn_unet_s5-d16 | unet | 512x512 | 0.01 | - | - | [config](https://github.com/open-mmlab/mmsegmentation/tree/dev-1.x/projects/medical/2d_image/dermoscopy/isic2017_task1/configs/fcn-unet-s5-d16_unet_1xb16-0.01-20k_isic2017-task1-512x512.py) |
| fcn_unet_s5-d16 | unet | 512x512 | 0.001 | - | - | [config](https://github.com/open-mmlab/mmsegmentation/tree/dev-1.x/projects/medical/2d_image/dermoscopy/isic2017_task1/configs/fcn-unet-s5-d16_unet_1xb16-0.001-20k_isic2017-task1-512x512.py) |
| fcn_unet_s5-d16 | unet | 512x512 | 0.0001 | - | - | [config](https://github.com/open-mmlab/mmsegmentation/tree/dev-1.x/projects/medical/2d_image/dermoscopy/isic2017_task1/configs/fcn-unet-s5-d16_unet_1xb16-0.0001-20k_isic2017-task1-512x512.py) |
## Checklist
- [x] Milestone 1: PR-ready, and acceptable to be one of the `projects/`.
- [x] Finish the code
- [x] Basic docstrings & proper citation
- [ ] Test-time correctness
- [x] A full README
- [ ] Milestone 2: Indicates a successful model implementation.
- [ ] Training-time correctness
- [ ] Milestone 3: Good to be a part of our core package!
- [ ] Type hints and docstrings
- [ ] Unit tests
- [ ] Code polishing
- [ ] Metafile.yml
- [ ] Move your modules into the core package following the codebase's file hierarchy structure.
- [ ] Refactor your modules into the core package following the codebase's file hierarchy structure.

17
projects/medical/2d_image/dermoscopy/isic2017_task1/configs/fcn-unet-s5-d16_unet_1xb16-0.0001-20k_isic2017-task1-512x512.py 100644
View File

@ -0,0 +1,17 @@
_base_ = [
'mmseg::_base_/models/fcn_unet_s5-d16.py', './isic2017-task1_512x512.py',
'mmseg::_base_/default_runtime.py',
'mmseg::_base_/schedules/schedule_20k.py'
]
custom_imports = dict(imports='datasets.isic2017-task1_dataset')
img_scale = (512, 512)
data_preprocessor = dict(size=img_scale)
optimizer = dict(lr=0.0001)
optim_wrapper = dict(optimizer=optimizer)
model = dict(
data_preprocessor=data_preprocessor,
decode_head=dict(num_classes=2),
auxiliary_head=None,
test_cfg=dict(mode='whole', _delete_=True))
vis_backends = None
visualizer = dict(vis_backends=vis_backends)

17
projects/medical/2d_image/dermoscopy/isic2017_task1/configs/fcn-unet-s5-d16_unet_1xb16-0.001-20k_isic2017-task1-512x512.py 100644
View File

@ -0,0 +1,17 @@
_base_ = [
'mmseg::_base_/models/fcn_unet_s5-d16.py', './isic2017-task1_512x512.py',
'mmseg::_base_/default_runtime.py',
'mmseg::_base_/schedules/schedule_20k.py'
]
custom_imports = dict(imports='datasets.isic2017-task1_dataset')
img_scale = (512, 512)
data_preprocessor = dict(size=img_scale)
optimizer = dict(lr=0.001)
optim_wrapper = dict(optimizer=optimizer)
model = dict(
data_preprocessor=data_preprocessor,
decode_head=dict(num_classes=2),
auxiliary_head=None,
test_cfg=dict(mode='whole', _delete_=True))
vis_backends = None
visualizer = dict(vis_backends=vis_backends)

17
projects/medical/2d_image/dermoscopy/isic2017_task1/configs/fcn-unet-s5-d16_unet_1xb16-0.01-20k_isic2017-task1-512x512.py 100644
View File

@ -0,0 +1,17 @@
_base_ = [
'mmseg::_base_/models/fcn_unet_s5-d16.py', './isic2017-task1_512x512.py',
'mmseg::_base_/default_runtime.py',
'mmseg::_base_/schedules/schedule_20k.py'
]
custom_imports = dict(imports='datasets.isic2017-task1_dataset')
img_scale = (512, 512)
data_preprocessor = dict(size=img_scale)
optimizer = dict(lr=0.01)
optim_wrapper = dict(optimizer=optimizer)
model = dict(
data_preprocessor=data_preprocessor,
decode_head=dict(num_classes=2),
auxiliary_head=None,
test_cfg=dict(mode='whole', _delete_=True))
vis_backends = None
visualizer = dict(vis_backends=vis_backends)

41
projects/medical/2d_image/dermoscopy/isic2017_task1/configs/isic2017-task1_512x512.py 100644
View File

@ -0,0 +1,41 @@
dataset_type = 'ISIC2017Task1'
data_root = 'data/'
img_scale = (512, 512)
train_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='LoadAnnotations'),
dict(type='Resize', scale=img_scale, keep_ratio=False),
dict(type='RandomFlip', prob=0.5),
dict(type='PhotoMetricDistortion'),
dict(type='PackSegInputs')
]
test_pipeline = [
dict(type='LoadImageFromFile'),
dict(type='Resize', scale=img_scale, keep_ratio=False),
dict(type='LoadAnnotations'),
dict(type='PackSegInputs')
]
train_dataloader = dict(
batch_size=16,
num_workers=4,
persistent_workers=True,
sampler=dict(type='InfiniteSampler', shuffle=True),
dataset=dict(
type=dataset_type,
data_root=data_root,
data_prefix=dict(
img_path='images/train/', seg_map_path='masks/train/'),
pipeline=train_pipeline))
val_dataloader = dict(
batch_size=1,
num_workers=4,
persistent_workers=True,
sampler=dict(type='DefaultSampler', shuffle=False),
dataset=dict(
type=dataset_type,
data_root=data_root,
data_prefix=dict(img_path='images/val/', seg_map_path='masks/val/'),
pipeline=test_pipeline))
test_dataloader = val_dataloader
val_evaluator = dict(type='IoUMetric', iou_metrics=['mIoU', 'mDice'])
test_evaluator = dict(type='IoUMetric', iou_metrics=['mIoU', 'mDice'])

30
projects/medical/2d_image/dermoscopy/isic2017_task1/datasets/isic2017-task1_dataset.py 100644
View File

@ -0,0 +1,30 @@
from mmseg.datasets import BaseSegDataset
from mmseg.registry import DATASETS
@DATASETS.register_module()
class ISIC2017Task1(BaseSegDataset):
"""ISIC2017Task1 dataset.
In segmentation map annotation for ISIC2017Task1,
``reduce_zero_label`` is fixed to False. The ``img_suffix``
is fixed to '.png' and ``seg_map_suffix`` is fixed to '.png'.
Args:
img_suffix (str): Suffix of images. Default: '.png'
seg_map_suffix (str): Suffix of segmentation maps. Default: '.png'
reduce_zero_label (bool): Whether to mark label zero as ignored.
Default to False.
"""
METAINFO = dict(classes=('normal', 'skin lesion'))
def __init__(self,
img_suffix='.png',
seg_map_suffix='.png',
reduce_zero_label=False,
**kwargs) -> None:
super().__init__(
img_suffix=img_suffix,
seg_map_suffix=seg_map_suffix,
reduce_zero_label=reduce_zero_label,
**kwargs)

127
projects/medical/2d_image/dermoscopy/isic2017_task1/tools/prepare_dataset.py 100755
View File

@ -0,0 +1,127 @@
import glob
import os
import shutil
import numpy as np
from PIL import Image
def check_maskid(train_imgs):
for i in train_masks:
img = Image.open(i)
print(np.unique(np.array(img)))
def reformulate_file(image_list, mask_list):
file_list = []
for idx, (imgp,
maskp) in enumerate(zip(sorted(image_list), sorted(mask_list))):
item = {'image': imgp, 'label': maskp}
file_list.append(item)
return file_list
def convert_maskid(mask):
# add mask id conversion
arr_mask = np.array(mask).astype(np.uint8)
arr_mask[arr_mask == 255] = 1
return Image.fromarray(arr_mask)
def check_file_exist(pair_list):
rel_path = os.getcwd()
for idx, sample in enumerate(pair_list):
image_path = sample['image']
assert os.path.exists(os.path.join(rel_path, image_path))
if 'label' in sample:
mask_path = sample['label']
assert os.path.exists(os.path.join(rel_path, mask_path))
print('all file path ok!')
def process_dataset(file_lists, part_dir_dict):
for ith, part in enumerate(file_lists):
part_dir = part_dir_dict[ith]
for sample in part:
# read image and mask
image_path = sample['image']
if 'label' in sample:
mask_path = sample['label']
basename = os.path.basename(image_path)
targetname = basename.split('.')[0] # from image name
# check image file
img_save_path = os.path.join(root_path, 'images', part_dir,
targetname + save_img_suffix)
if not os.path.exists(img_save_path):
if not image_path.endswith('.png'):
src = Image.open(image_path)
src.save(img_save_path)
else:
shutil.copy(image_path, img_save_path)
if mask_path is not None:
mask_save_path = os.path.join(root_path, 'masks', part_dir,
targetname + save_seg_map_suffix)
if not os.path.exists(mask_save_path):
# check mask file
mask = Image.open(mask_path).convert('L')
# convert mask id
mask = convert_maskid(mask)
if not mask_path.endswith('.png'):
mask.save(mask_save_path)
else:
mask.save(mask_save_path)
# print image num
part_dir_folder = os.path.join(root_path, 'images', part_dir)
print(
f'{part_dir} has {len(os.listdir(part_dir_folder))} images completed!' # noqa
)
if __name__ == '__main__':
root_path = 'data/' # original file
img_suffix = '.jpg'
seg_map_suffix = '.png'
save_img_suffix = '.png'
save_seg_map_suffix = '.png'
train_imgs = glob.glob('data/ISIC-2017_Training_Data/*' + img_suffix)
train_masks = glob.glob('data/ISIC-2017_Training_Part1_GroundTruth/*' +
seg_map_suffix)
val_imgs = glob.glob('data/ISIC-2017_Validation_Data/*' + img_suffix)
val_masks = glob.glob('data/ISIC-2017_Validation_Part1_GroundTruth/*' +
seg_map_suffix)
test_imgs = glob.glob('data/ISIC-2017_Test_v2_Data/*' + img_suffix)
test_masks = glob.glob('data/ISIC-2017_Test_v2_Part1_GroundTruth/*' +
seg_map_suffix)
assert len(train_imgs) == len(train_masks)
assert len(val_imgs) == len(val_masks)
assert len(test_imgs) == len(test_masks)
os.system('mkdir -p ' + root_path + 'images/train/')
os.system('mkdir -p ' + root_path + 'images/val/')
os.system('mkdir -p ' + root_path + 'images/test/')
os.system('mkdir -p ' + root_path + 'masks/train/')
os.system('mkdir -p ' + root_path + 'masks/val/')
os.system('mkdir -p ' + root_path + 'masks/test/')
part_dir_dict = {0: 'train/', 1: 'val/', 2: 'test/'}
train_pair_list = reformulate_file(train_imgs, train_masks)
val_pair_list = reformulate_file(val_imgs, val_masks)
test_pair_list = reformulate_file(test_imgs, test_masks)
check_file_exist(train_pair_list)
check_file_exist(val_pair_list)
check_file_exist(test_pair_list)
part_dir_dict = {0: 'train/', 1: 'val/', 2: 'test/'}
process_dataset([train_pair_list, val_pair_list, test_pair_list],
part_dir_dict)
